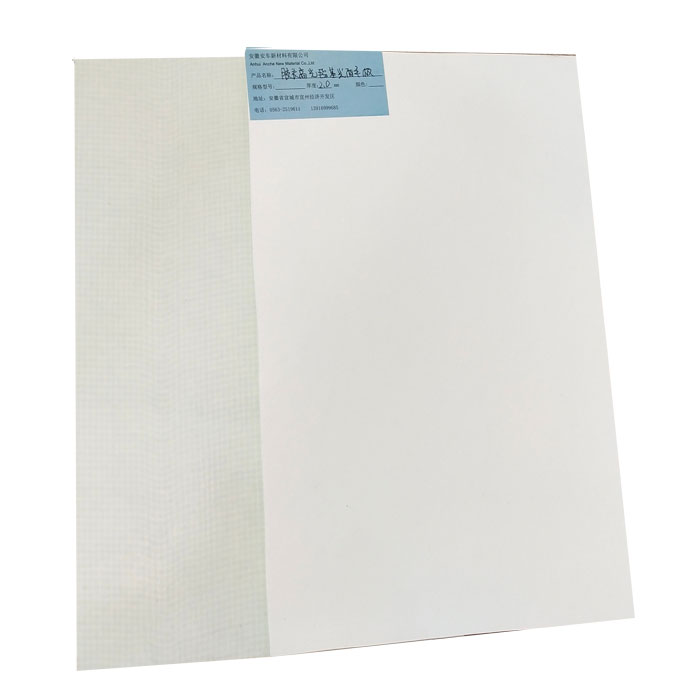

FRP Anti-UV Insulation Refrigerator Trailer Fiberglass Panels

ADVANTAGE OF FRP PRODUCTS

1、Light Weight and high strength

Fiberglass has a density of about 1.5,Four to five times lighter than steel,But it's a lot stronger,Tensile strength 90-130MPa, bending strength 140-300MPa

2、Corrosion resistance

FRP is an excellent corrosion resistant material,Good resistance to acid, Alkali, salt and most organic matter, seawater and moisture,It is also resistant to microbial action,This property is particularly suitable for use in rainy, humid and coastal areas, as well as in places with corrosive media

3、Good dimensional stability

The LINEAR EXPANSION COEFFICIENT OF FRP is 7.3 ~ 10 ~ 6 / °C, which is lower than that of steel and Aluminum Alloy and 1 / 15 of that of plastic,SO,The glass fiber reinforced plastic doors and windows have good dimensional stability, and the change of temperature will not affect the normal switch function of doors and windows.

4、Good weather resistance

Glass fiber reinforced plastic is a thermosetting polymer, resin cross-linked after the formation of a three-dimensional network of molecular structure, into an insoluble melt, even if heated will not melt high-temperature performance. And the low temperature resistance performance is better

5、Good insulation

FRP Is a good insulating material, it is not affected by electromagnetic waves, does not reflect radio waves, good microwave transmission, can withstand high voltage without damage. Therefore, fiberglass doors and windows have special uses for temporary buildings in the field and for buildings with communication systems.

6、Colorful

FRP high hardness, can be painted with a variety of paint, made of various colors of windows and doors, to adapt to different styles and levels of building facade effect.

ANCHE FRP PANEL ADVANTAGE

1 High Mechanical Performance

2 Smooth surface, no edge warping

3 ACID and Alkali resistance, wear resistance

4 Easy to clean

5 Low surface fiber texture

6 Excellent water resistance

7 Low odor, in line with the national food grade requirements.

FRP PANEL STRUCTURE

Gel-coat

The surface of the FRP PANEL is sealed by Gel coating, which can effectively resist ultraviolet radiation and weathering.Poor quality fiberglass reinforced plastic surfaces are prone to cracking, especially white panels, which are susceptible to ultraviolet radiation. The surface of the fiberglass site will reflect more light than other areas.The use of high-quality Gel coat to improve the material's UV resistance and color durability, while increasing the gloss of the surface of the plate and making the surface not appear pores, cracking, scratches and other phenomena thus form a very beautiful and striking appearance. The GEL coat also provides greater resistance to corrosion and can be cleaned.

Fiberglass

Anche imported from abroad using glass fiber mat and fiber cloth, and resin bonding stronger, more soluble in styrene, at the same time anche products high strength, light weight, good toughness. The characteristics of good impact resistance are also well displayed.

Base

The substrate surface of the FRP panel is more flat, clean, no air hole, no crack, no scratch, adhesion is better.

APPLICATION

FRP panels are widely used in buildings, refrigerated warehouses, refrigerated vehicles, trains, passenger cars, ships, food processing plants, restaurants, pharmaceutical factories, laboratories, hospitals, bathrooms, large supermarkets, schools and other places, such as walls, partitions, doors, ceilings, etc. .

SPECIFICATION ：

PHYSICAL PROPERTY:

                                                               WE ASSURE

1 Stable Quality
2 Quickly Response
3 Independent Laboratory
4.Delivery Fastly
